3000*3000mm Rectangular pipe jacking machine

Name: 30003000mm Rectangular pipe jacking machine
Brand: tangxing
Price: 1 USD

China 3000*3000mm Rectangular pipe jacking machine factory

Brand Name : tangxing

Model Number : 3000*3000mm

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1set

Payment Terms : T/T

Supply Ability : 300sets per year

Delivery Time : one month

Packaging Details : in bulk

Contact Now

Features:

●Full section cutting
●Keeping earth pressure balance, low construction disturbance to surrounding soil..
●High space utilization rate, fewer construction area..

Technical Parameters:

Technical parameter
	Machine head OD×Length mm		Φ300030005290
	Cutting head	Motor power Kw	30*4
		Max. torque KN.m	640
		Rotation rate:rpm	1.79
	Rectifying system	Cylinder no.	8
		Thrust: T	120
		Deviation angle	2.5
		Motor power:Kw	7.5
	Screw conveyor	Motor power kw	30*1
		speed(r/min)	15.3
		Excavated quantity m3/h	50
	Disengagement device	Cylinder stroke	350
		Cylinder Qty	4
		Cylinder thrust	64
	cable		220m
	control		PLC remote control (touch screen)
Total power main equipment				157.5

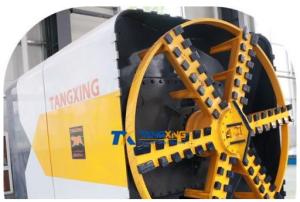

3000*3000mm Rectangular pipe jacking machine Images
